Printing on Wood

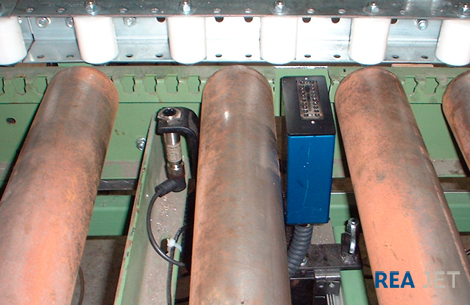

Foto: REA JET - High Resolution printing system - contact-free marking of wood

Definition of Task

  • wooden boards and squared timber with planed surfaces are printed with customer logos and an IPPC symbol

Special Product Specification

  • the printing commences with black ink at a text height of 48 mm (1,9 inch)
  • the wood moves past the print head at a speed of 25 m/min. (82 feet/min.) on a roll conveyor system
  • the print head is mounted between the rolls under the conveyor
  • the printing occurs on the bottom side of the material
  • the environment is very dusty with the temperatures ranging between –5° and +40° Celsius (23° and 104° Fahrenheit) according to the change of season and daytime

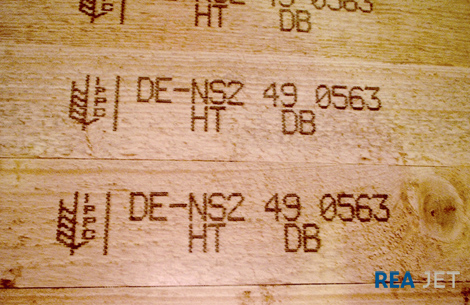

Foto: REA JET - High Resolution printing system - contact-free marking of wood

REA JET Solution

  • System: REA JET PK High Resolution Ink Jet Printer (SKPK 352/32)

Advantages of the REA JET Solution

  • felixible design of customer logos
  • well legible print image even in the dusty environment



Foto: REA JET - High Resolution printing system - contact-free marking of wood
